Payload Spec

This document lists the request and response payloads for each of the API requests in the API Gateway / Todo interop scenario.

Note: These payloads and corresponding interop results are for the AuthZEN 1.0 Draft 02 version of the spec.

tip

This is a copy of the payload document defined by the AuthZEN WG. The definitive document can be found here.

Context

The API Gateway scenario layers on top of the existing Todo scenario.

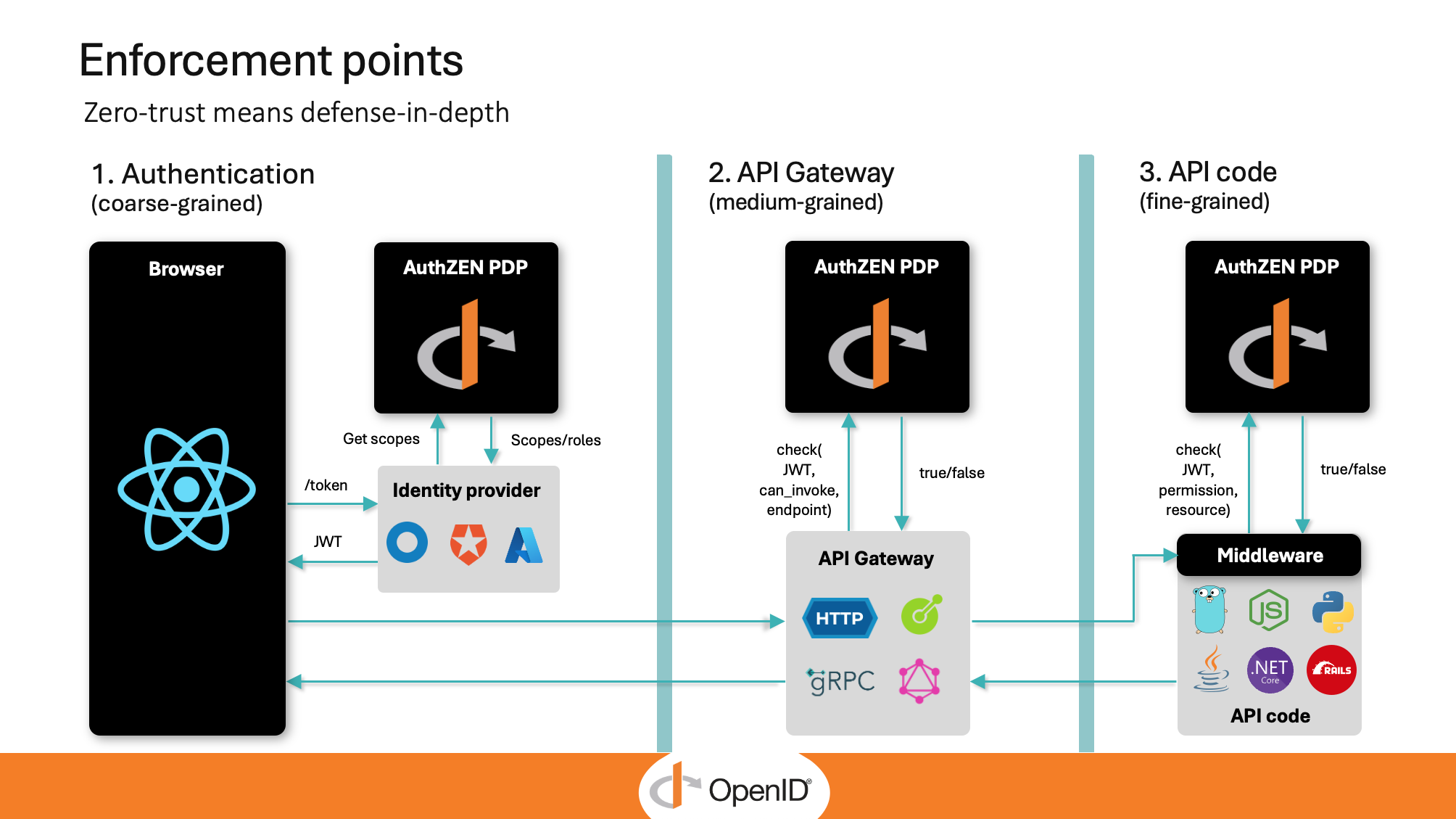

In this scenario, there are two policy enforcement points - the API gateway, and the Todo app itself.

enforcement points

Todo app: fine-grained authorization

Currently, the Todo authorization scenario relies on the application to supply the OwnerID for each Todo. The application retrieves this from a SQLite database, which is not exposed/accessible to the API gateway.

Therefore, only the application has all the data to be able to correctly formulate the question "can this user perform this action on this specific todo".

This scenario is documented here and remains unchanged for the Gartner inteorp.

API gateway: medium-grained authorization

The API Gateway can do "medium-grained authorization" (also known as "functional authorization") in this scenario, formulating the question "can this user invoke this HTTP method on this route".

The remainder of this document describes the endpoints that the React application invokes (and the API gateway proxies).

For each endpoint, it documents the payload the AuthZEN requests that participating gateways will issue to AuthZEN-compliant PDPs, and how the PDPs should respond to each request.

Participating PDPs will, therefore, employ TWO policies: one for the existing fine-grained authorization scenario, and a new policy to handle the route authorization done by the Gateway (which will be referred to as "medium-grained authorization").

Overview of the scenario

The Todo application manages a shared todo list between a set of users.

There are 5 actions that the Todo application supports, each with a permission associated with it:

Action	Permission
View a user's information	`can_read_user`
View all Todos	`can_read_todos`
Create a Todo	`can_create_todo`
(Un)complete a Todo	`can_update_todo`
Delete a Todo	`can_delete_todo`

There are four roles defined:

viewer - able to view the shared todo list (can_read_todos), as well as information about each of the owners of a Todo (notably, their picture) (can_read_user)
editor - viewer + the ability to create new Todos (can_create_todo), as well as edit and delete Todos that are owned by that user
admin - editor + the ability to delete any Todos (can_delete_todo)
evil_genius - editor + the ability to edit Todos that don't belong to the user (can_update_todo)

There are 5 users defined (based on the "Rick & Morty" cartoon), each with one (or more) roles, defined below in the Subjects section.

Component description

The interop consists of the following components:

a simple React frontend that manages Todo lists.
a Node.JS backend that serves 5 routes that the frontend talks to.
API gateways provided by interop participants, which proxy these 5 routes, and perform route-level (medium-grained) authorization
external PDPs provided by the interop participants, which the API gateway calls using the AuthZEN API to issue authorization decisions.

The URIs listed in the document below are the contracts between the React app and the Node.JS backend.

The payloads listed below are the contract between the API Gateway (the PEP) and the PDP.

Subjects

Note: in every request payload, the subject indicated by <subject_from_jwt> is one of the following strings:

User	PID
Rick Sanchez	CiRmZDA2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs
Morty Smith	CiRmZDE2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs
Summer Smith	CiRmZDI2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs
Beth Smith	CiRmZDM2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs
Jerry Smith	CiRmZDQ2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs

This will be extracted from the sub claim in the JWT passed in as a bearer token in the Authorization header of each request, and passed into the AuthZEN request.

Attributes associated with users (expected to come from PIP)

These are noted below in JSON format, with the key being the PID string from the table above, and the value being a set of attributes associated with the user.

{
  "CiRmZDA2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs": {
    "id": "rick@the-citadel.com",
    "name": "Rick Sanchez",
    "email": "rick@the-citadel.com",
    "roles": ["admin", "evil_genius"],
    "picture": "https://www.topaz.sh/assets/templates/citadel/img/Rick%20Sanchez.jpg"
  },
  "CiRmZDM2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs": {
    "id": "beth@the-smiths.com",
    "name": "Beth Smith",
    "email": "beth@the-smiths.com",
    "roles": ["viewer"],
    "picture": "https://www.topaz.sh/assets/templates/citadel/img/Beth%20Smith.jpg"
  },
  "CiRmZDE2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs": {
    "id": "morty@the-citadel.com",
    "name": "Morty Smith",
    "email": "morty@the-citadel.com",
    "roles": ["editor"],
    "picture": "https://www.topaz.sh/assets/templates/citadel/img/Morty%20Smith.jpg"
  },
  "CiRmZDI2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs": {
    "id": "summer@the-smiths.com",
    "name": "Summer Smith",
    "email": "summer@the-smiths.com",
    "roles": ["editor"],
    "picture": "https://www.topaz.sh/assets/templates/citadel/img/Summer%20Smith.jpg"
  },
  "CiRmZDQ2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs": {
    "id": "jerry@the-smiths.com",
    "name": "Jerry Smith",
    "email": "jerry@the-smiths.com",
    "roles": ["viewer"],
    "picture": "https://www.topaz.sh/assets/templates/citadel/img/Jerry%20Smith.jpg"
  }
}

The PIP can, of course, express this in any way they desire. The policy for each implementation has its own contract with its PIP, and this contract is outside of the scope of the PEP-PDP interop scenario.

Requests and payloads

Unless otherwise noted, these are payloads for the evaluation API, and are meant to be sent using the following HTTP(S) request:

POST /access/v1/evaluation HTTP/1.1
Host: mypdp.com
[Authorization: Bearer <token>]

`GET /users/{userId}`

Get information (e.g. email, picture) associated with a user. This is used by the backend to render the picture of the user that owns each todo.

For simplicity, the policy always returns true.

Request payload

{
  "subject": {
    "type": "user",
    "id": "<subject_from_jwt>"
  },
  "action": {
    "name": "GET"
  },
  "resource": {
    "type": "route",
    "id": "/users/{userId}"
  },
  "context": {
  }
}

Note: Each of the subject, action, resource fields MAY contain additional key/value pairs in the properties field - for example, additional information about the subject or resource. In addition, the context field MAY contain additional key/value pairs - for example, HTTP headers for the request. HTTP Gateways that map these into standard locations as per the AuthZEN REST API Gateway Profile proposal are compliant with these payloads. The PDPs, however, will ignore those extra fields for the purpose of this interop showcase.

Response payload

For every subject and resource combination:

{
  "decision": true
}

`GET /todos`

Get the list of todos.

Evaluation API payload

For simplicity, the policy always returns true for every user.

Evaluation API Request payload

{
  "subject": {
    "type": "user",
    "id": "<subject_from_jwt>"
  },
  "action": {
    "name": "GET"
  },
  "resource": {
    "type": "route",
    "id": "/todos"
  },
  "context": {
  }
}

Note: Each of the subject, action, resource fields MAY contain additional key/value pairs in the properties field - for example, additional information about the subject or resource. In addition, the context field MAY contain additional key/value pairs - for example, HTTP headers for the request. HTTP Gateways that map these into standard locations as per the AuthZEN REST API Gateway Profile proposal are compliant with these payloads. The PDPs, however, will ignore those extra fields for the purpose of this interop showcase.

Evaluation API Response payload

For every subject and resource combination:

{
  "decision": true
}

`POST /todos`

Create a new todo.

The policy evaluates the subject's roles attribute to determine whether the user can create a new todo.

Request payload

{
  "subject": {
    "type": "user",
    "id": "<subject_from_jwt>"
  },
  "action": {
    "name": "POST"
  },
  "resource": {
    "type": "route",
    "id": "/todos"
  },
  "context": {
  }
}

Note: Each of the subject, action, resource fields MAY contain additional key/value pairs in the properties field - for example, additional information about the subject or resource. In addition, the context field MAY contain additional key/value pairs - for example, HTTP headers for the request. HTTP Gateways that map these into standard locations as per the AuthZEN REST API Gateway Profile proposal are compliant with these payloads. The PDPs, however, will ignore those extra fields for the purpose of this interop showcase.

Response payload

Only users with a roles attribute that contains admin or editor return a true decision. In the user set above, this includes Rick, Morty, and Summer.

{
  "decision": true
}

For the other two users, Beth and Jerry, the decision is false.

{
  "decision": false
}

`PUT /todos/{todoId}`

Edit (complete) a todo.

The policy allows the operation if the subject's roles attribute contains the evil_genius role OR editor role.

The Node.js back-end allows users with the evil_genius role to complete ANY todos, but only allows users with the editor role to complete their own Todos.

However, given the fact that the incoming HTTP request DOES NOT include information about the owner of the Todo, the API Gateway, which only performs medium-grained authorization, allows any editor or evil_genius to execute this operation (which means) passing it to the Todo back-end to perform fine-grained authorization.

Request payload

{
  "subject": {
    "type": "user",
    "id": "<subject_from_jwt>"
  },
  "action": {
    "name": "PUT"
  },
  "resource": {
    "type": "route",
    "id": "/todos/{todoId}"
  },
  "context": {
  }
}

Note: Each of the subject, action, resource fields MAY contain additional key/value pairs in the properties field - for example, additional information about the subject or resource. In addition, the context field MAY contain additional key/value pairs - for example, HTTP headers for the request. HTTP Gateways that map these into standard locations as per the AuthZEN REST API Gateway Profile proposal are compliant with these payloads. The PDPs, however, will ignore those extra fields for the purpose of this interop showcase.

Response payload

Only users with a roles attribute that contains evil_genius (Rick), OR editor (Morty and Summer), return a true decision.

For the user Morty, the following request will return a true decision:

{
  "subject": {
    "type": "user",
    "id": "CiRmZDE2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs"
  },
  "action": {
    "name": "PUT"
  },
  "resource": {
    "type": "route",
    "id": "/todos/{todoId}"
  },
  "context": {
  }
}

{
  "decision": true
}

For Jerry (who is a viewer), the decision will be false:

{
  "decision": false
}

`DELETE /todos/{todoId}`

Delete a todo.

The policy allows the operation if the subject's roles attribute contains the admin role OR editor role.

The Node.js back-end allows users with the admin role to complete ANY todos, but only allows users with the editor role to complete their own Todos.

However, given the fact that the incoming HTTP request DOES NOT include information about the owner of the Todo, the API Gateway, which only performs medium-grained authorization, allows any editor or admin to execute this operation (which means) passing it to the Todo back-end to perform fine-grained authorization.

Request payload

{
  "subject": {
    "type": "user",
    "id": "<subject_from_jwt>"
  },
  "action": {
    "name": "DELETE"
  },
  "resource": {
    "type": "route",
    "id": "/todos/{id}"
  },
  "context": {
  }
}

Note: Each of the subject, action, resource fields MAY contain additional key/value pairs in the properties field - for example, additional information about the subject or resource. In addition, the context field MAY contain additional key/value pairs - for example, HTTP headers for the request. HTTP Gateways that map these into standard locations as per the AuthZEN REST API Gateway Profile proposal are compliant with these payloads. The PDPs, however, will ignore those extra fields for the purpose of this interop showcase.

Response payload

Only users with a roles attribute that contains admin (Rick), OR editor (Morty and Summer), return a true decision.

For the user Morty, the following request will return a true decision:

{
  "subject": {
    "type": "user",
    "id": "CiRmZDE2MTRkMy1jMzlhLTQ3ODEtYjdiZC04Yjk2ZjVhNTEwMGQSBWxvY2Fs"
  },
  "action": {
    "name": "DELETE"
  },
  "resource": {
    "type": "route",
    "id": "/todos/{todoId}"
  },
  "context": {
  }
}

{
  "decision": true
}

For Jerry (who is a viewer), the decision will be false:

{
  "decision": false
}
